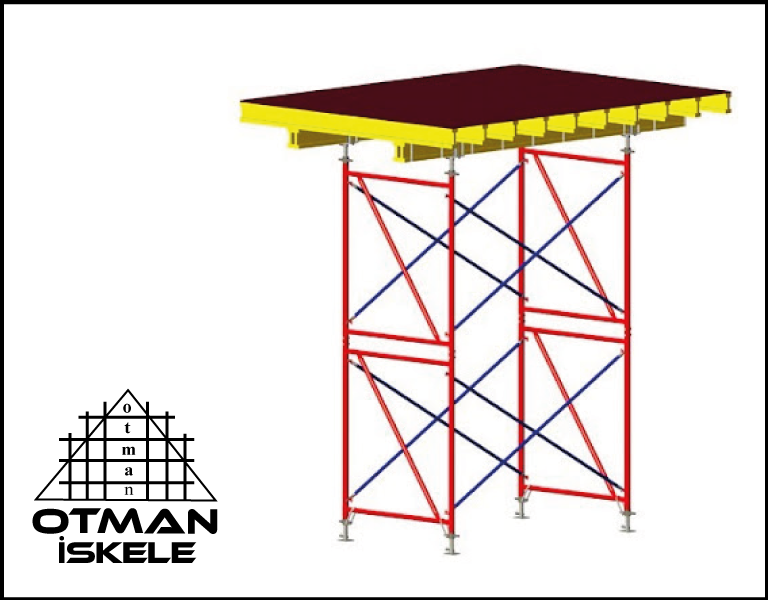

TABLE TYPE SCAFFOLDING

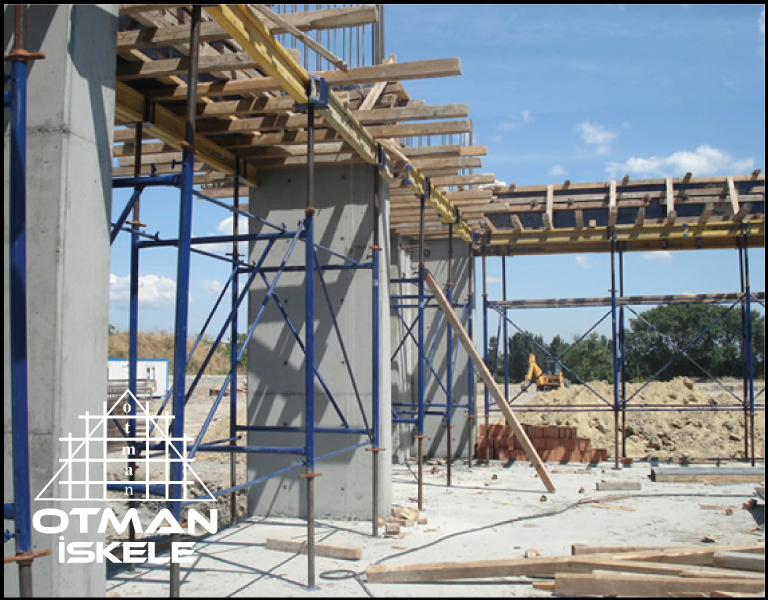

  • Table type scaffolding system can be used as slab and beam formwork carrier system in high and heavy concrete projects such as bridges, viaducts, industry, power plants.
  • Thanks to the formwork scaffolding application, it provides ease of use at great heights and heavy loads.
  • Since it consists of standard elements, it ensures that the installation is fast and easy.
  • Thanks to the application of the ladder tower, it provides safe and secure working in deep and high working areas.
  • Automatic gas metal arc welding machines are used in our productions.
System Features
  • It is an extremely safe system that provides high savings in time and labor thanks to its easy, fast assembly and disassembly feature and convenient transportation.

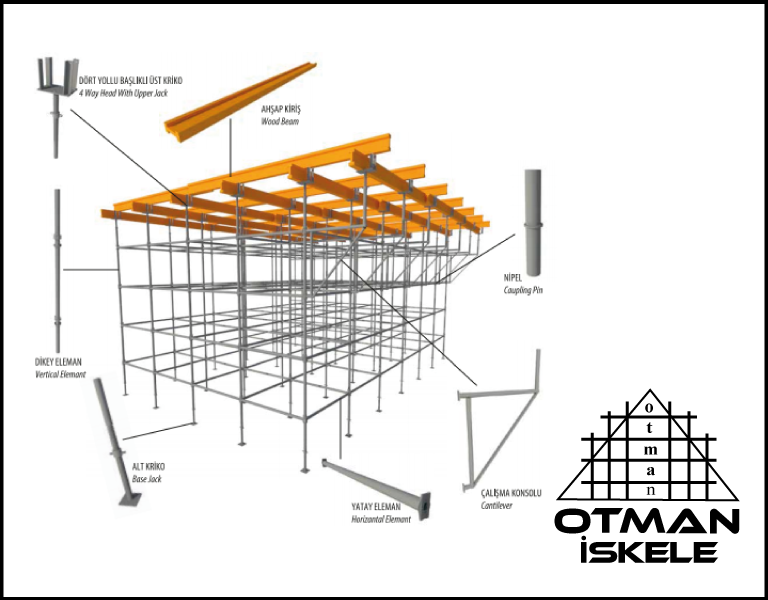

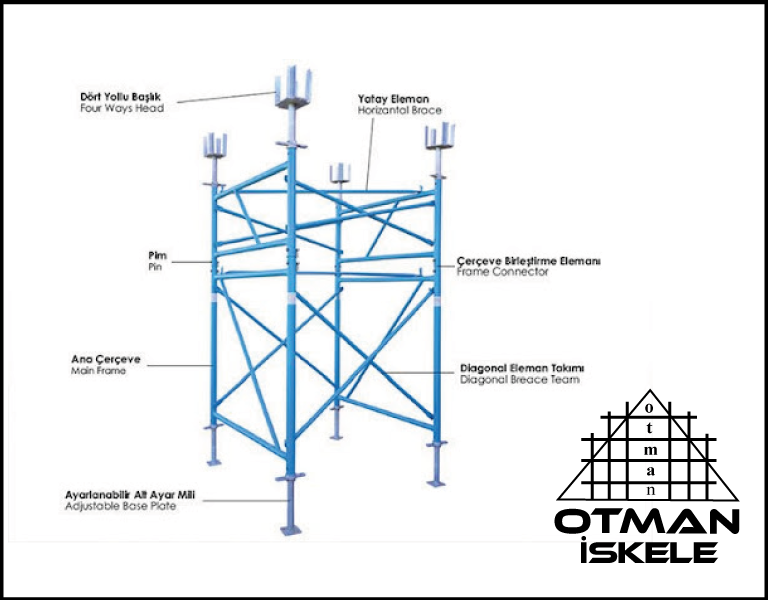

  • It consists of 3 main elements, namely Diagonal element, Horizontal element and Frame element.
  • Frame element 60×4 mm, Diagonal element and Horizontal element. The element is produced from 34×2.5 mm mechanically tested and TS EN 10219-1 certified standard pipes.
  • 3 different main frame elements with 150/110 cm, 150/150 cm, 150/180 cm heights, lower and upper adjustment elements and all kinds of flooring It can be applied at height and provides ease of use.
  • They can be transported with the help of cranes and special wheeled trolleys.
  • The system is specially painted with antipast.
  • It can be galvanized upon request.
